China LUTONG PY180C Motor grader with blade and ripper price

FOB Reference Price:Get Latest Price
$48,000.00 - $52,000.00 / Unit | 1 Unit/Units (Min. Order)
Weight:
16000KG
Model Number:
PY180C
Lead Time:
Quantity(Units) 1 - 15 >15
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Forward Speed(km/h):
36
Reverse Speed(km/h):
25
Place of Origin:
Henan, China
Brand Name:
LUTONG
Dimension(L*W*H):
8605*2695*3420mm
Warranty:
1 YEAR
Hydraulic Cylinder Brand:
Top brand
Hydraulic Pump Brand:
Top brand
Hydraulic Valve Brand:
Top brand
Engine Brand:
Top brand
UNIQUE SELLING POINT:
Low Maintenance Cost
Engine Model:
6BTA5.9
Wheelbase:
5647mm
Operating weight(Standard):
16000KG
After-sales Service Provided:
Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available
Certification:
CE, ISO
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude package; roro; bulk ship or 40FR
Port
Shanghai Port; Tianjin Port
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 15 >15
Est. Time(days) 7 To be negotiated

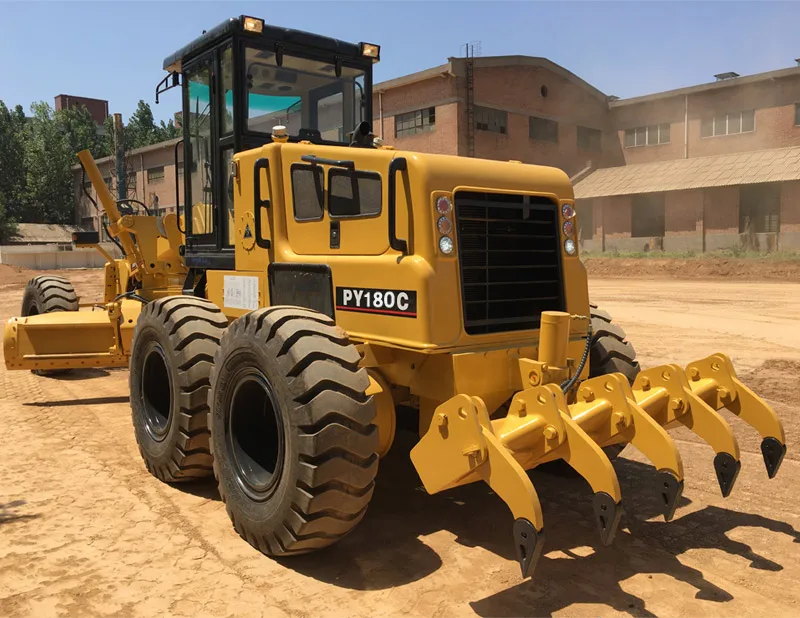

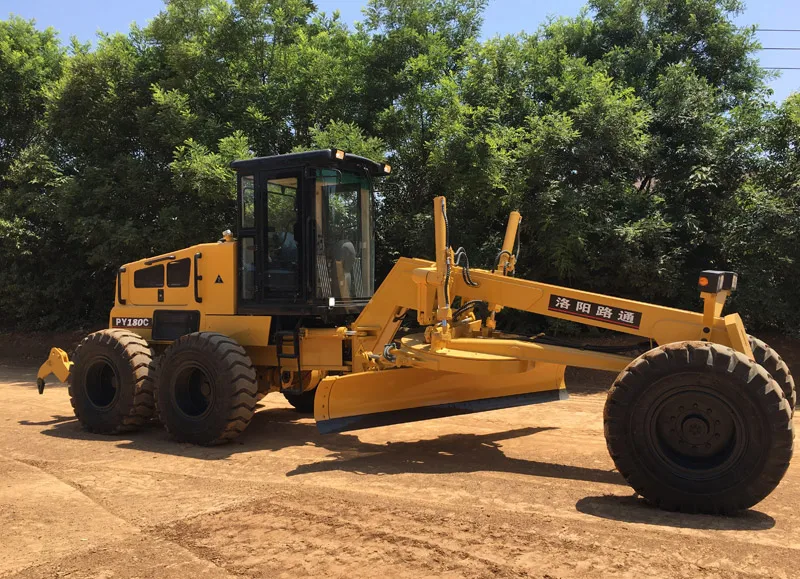

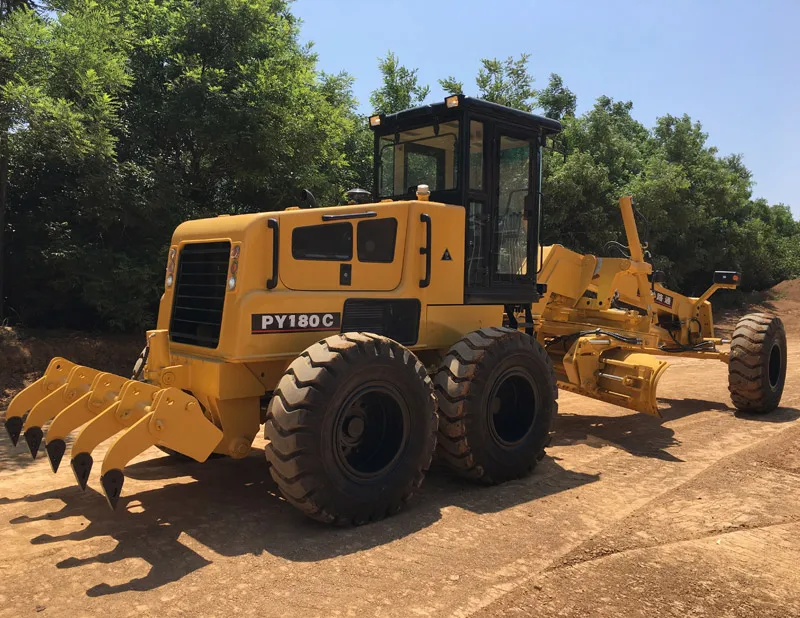

LUTONG PY180C Motor Grader

Self-propelled articulated motor grader is suitable for large-scale land leveling in foudation constructions. It can be used for ditching, grading, slope scraping, bulldozing, ripping, virgin land scarifying and snow-removing etc, which is modernized construction equipment of mulit-functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrail ground and farmland.

Main Features:
1. Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
2. Torque converter and power-shift gearbox introduced from GERMANY Z F inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
3. Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
4. Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
5. Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board.
6. Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
7. Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
8. Dual diagonal appearance with whole metal hood 1m×1m distance.
9. Electro-hydraulically operated with entire instrumental monitoring system, Free
-maintenance OPTIMA Sweden batteries have.
10. It is optional for front bulldozing plate and rear ripper.

MODEL PY180C
Operating massKg16000
Front axle loadKg5150
Rear axle loadKg10850
Max forward speedKm/h36
Max backward speedKm/h25
Speed gear number F6/R3
Turning radius mm7800
Hydraulic system pressureMpa 18
Blade  lengt × heightmm3965×610
Front wheel trackmm2150
Rear wheel trackmm2255
wheelbasemm5647
Engine model mmCUMM INS 6BTA5.9
Engine powerkW132
Overall dimensionsmm8605×2695×3420
