XCMG SQ6.3SK3Q 6.3 Ton telescoping boom Truck Mounted Crane with high quality

FOB Reference Price:Get Latest Price
$9,800.00 - $12,000.00 / Unit | 1.0 Unit/Units (Min. Order)
Max. Lifting Load:
6.3 Ton
Model Number:
SQ6.3SK3Q
Lead Time:
Quantity(Units) 1 - 15 >15
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Feature:
Truck Crane
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Application:
Construction works
Rated Loading Capacity:
6300KG
Rated Lifting Moment:
15.75 t.m
Max. Lifting Height:
12.6m
Span:
11m
Place of Origin:
Jiangsu, China
Brand Name:
XCMG
Certification:
CE, ISO
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Hydraulic Cylinder Brand:
Top brand
Hydraulic Pump Brand:
Top brand
Hydraulic Valve Brand:
Top brand
Engine Brand:
Top brand
Model:
SQ6.3SK3Q
Brand:
XCMG
Origin:
Jiangsu, China
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude package, roro, bulk ship or 40 FR
Port
Shanghai Port, Tianjin Port

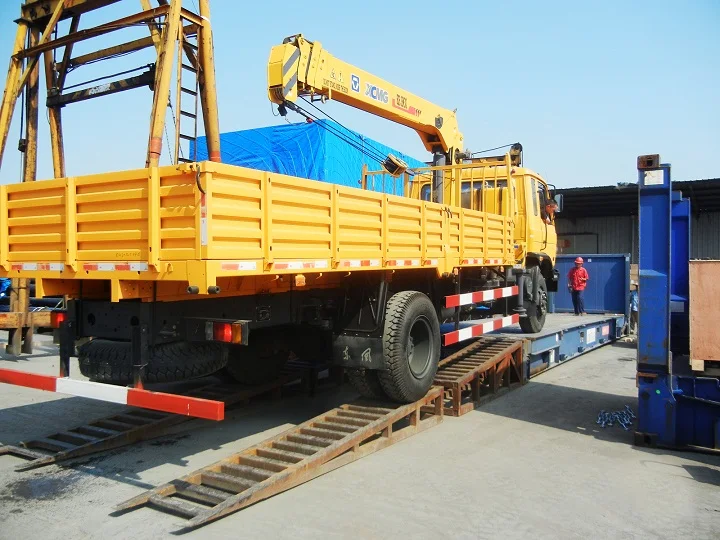

Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 15 >15
Est. Time(days) 10 To be negotiated

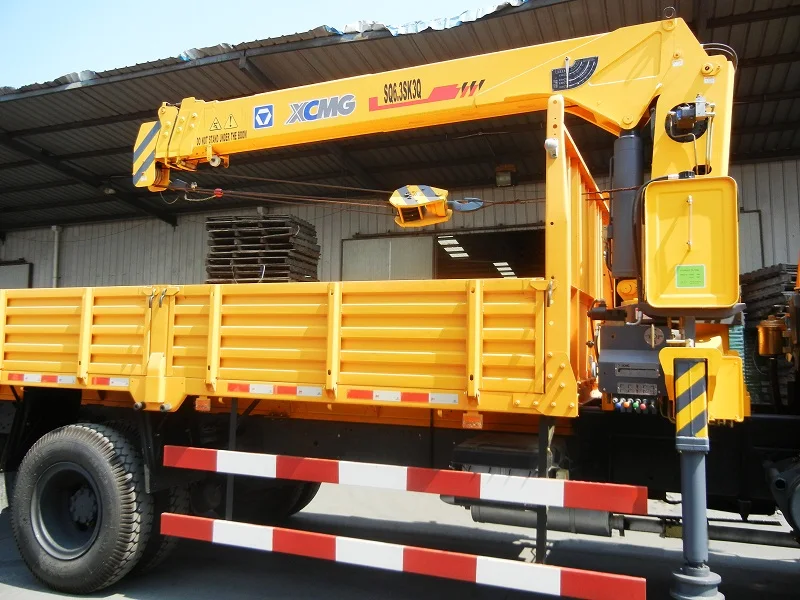

XCMG SQ6.3SK3Q Truck Mounted Crane



At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.



So, how do high-pressure hydraulic oil get? Each truck crane is equipped with a hydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.



Competitive Advantage

My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet a variety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.

My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of a large deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.

The application of the sub-arm, sub-winch and vice-hook provides a basis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.

ModelXCMG SQ6.3SK3QUnit
Max Lifting Capacity6300kg
Max Lifting Moment15.7T.M
Recommend Power20kw
Max Oil Flow of Hydraulic System40L/min
Max Pressure of Hydraulic System20MPa
Oil Tank Capacity90L
Rotation AngleAll Rotation
Crane Weight2117/2270kg
Installation Space900mm
Choice of ChassisCA1163P7K2L3E ; CA1176PK2L9T3A95 ; CA1170PK2L7T3EA80; CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1202KR1K3; EQ1141NBJ2; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S; NXG1160D3ZAL1X
SQ6.3SK2Q Lifting capability diagram
Working radius (m)2.53.826.178.5
Lifting capacity (kg)6300290016001200
