China SHANTUI SD16L 160hp Super-Wetland Bulldozer with blade

FOB Reference Price:Get Latest Price
$68,000.00 - $76,000.00 / Unit | 1 Unit/Units (Min. Order)
Engine Brand:
FPT CAMC AEOLUS WEICHAI
Power(W):
120kw
Lead Time:
Quantity(Units) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 15 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Graphic customization (Min. Order: 1 Units) Less
Samples:
$1,000.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support
Local Service Location:
Egypt, Canada, Turkey, United Kingdom
Showroom Location:
Egypt, Canada, Turkey, United Kingdom
Place of Origin:
Shandong, China
Brand Name:
SHANTUI
Model Number:
SD16
Condition:
New
Moving Type:
Crawler Bulldozer
Machine Weight:
18.46 kg
Dimension(Long * Breadth * High):
5262*4150*3074 mm
Dozing Capacity:
-
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Hydraulic Cylinder Brand:
Top brand
Hydraulic Pump Brand:
Top brand
Hydraulic Valve Brand:
Top brand
UNIQUE SELLING POINT:
Remote monitoring system
Engine model:
WD10G178E25/ SC11CB184G2B1
Ground pressure(Mpa):
0.027
Blade capacity(m3):
3.8 for straight tilting blade
Operating weight(t) (excluding ripper):
18.46
Net power/rated speed (kW/rpm):
120/1850
Blade type:
Straight tilting blade
Horse power:
160HP
Operating weight:
17000KG
engine model:
SC8D143G2B1
overall dimension:
5140*3388*3032mm
Supply Ability
Supply Ability:
300 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude package, with working tools in boxes
Port
Qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 15 20 To be negotiated
Catelogue





China SHANTUI SD16L 160hp Super-Wetland Bulldozer with blade

Product Description

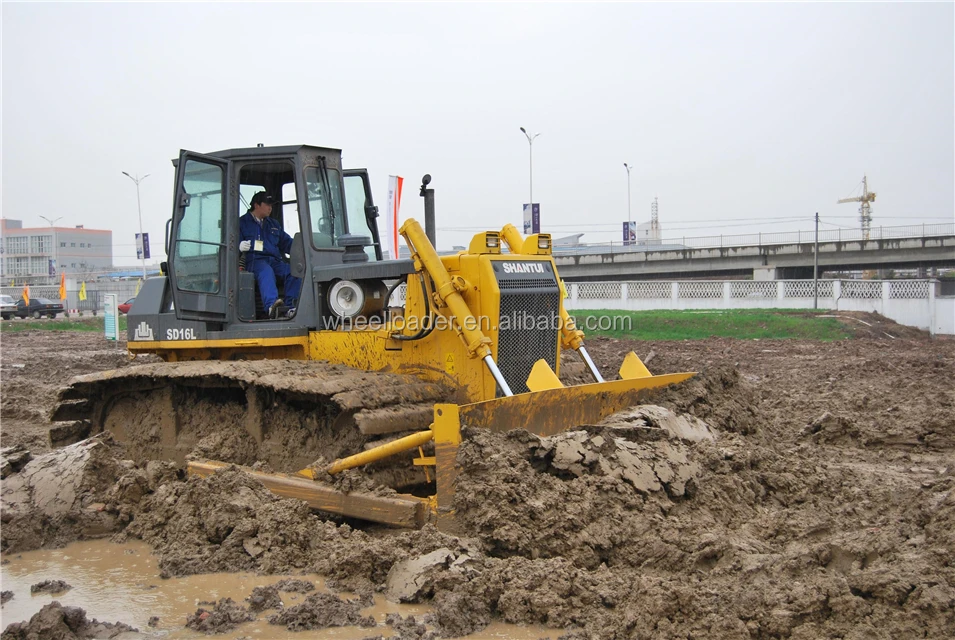

SD16L super-wetland bulldozer is developed in response to the operation demands of swamp and wetland conditions and is applicable for the operations in soft soil, wetland, mud, and swamp areas. It’s an essential mechanical equipment for the operations of soft sites (such as water conservancy projects).

Technical Features

The super-wide triangular tracks can prevent the entrapment of machine during operations in soft material sites (such as soft soil, wetland, and swamp).

For the blade, the large width-height ratio can better scrape the soft soil to adapt to the soft soil of various swamp sites and the special design ensures higher operating efficiency.

bulldozer Categories:

Shantui Bulldozer

shantui bulldozer Model

SD16

name

Shantui Bulldozer SD16 bulldozer

Bulldozer clicks:

418

Bulldozer Engine

Shangchai C6121ZG70B/Steyr WD10G175E15

Bulldozer Weight

17t



Specification Blade Type

Straight-tilt

Angle

U-type

Min.ground clearance(mm)

400

400

400

Ground pressure(MPa)

0.067

0.067

0.067

Min.turning radius(m)

4.7

4.5

4.9

Shantui Bulldozer Gradeability(°)

30

30

30

Shantui Bulldozer Track gauge(mm)

1880

1880

1880

Dozing capacity(m3)

4.5

4.4

5.0

Efficiency(Theoretical value in 40m)(m3 /h)

225

225

250

Shantui Bulldozer Blade width(mm)

3388

3970

3556

Shantui Bulldozer Blade height(mm)

1149

1090

1120

Shantui Bulldozer Max.drop below ground (mm)

540

540

530

Max.tilt adjustment(mm)

400

-

400

Shantui Bulldozer ENGINE
Model……………………………………………....ShangchaiC6121ZG70B / STEYR WD10G175E15
Water cooled,in-line,4-stroke,injection direct
Rated horsepower………………………………..120kW
Rated revolution……………………………….......1850r/min
Cylinder number-bore×stroke……………….......6-126×130mm
Piston displacement……………………………...9.726L
Min.fuel consumption…………………………......214g/KW.h
Shantui Bulldozer Max. torque………………………………………....764N.m

Shantui Bulldozer TRAVEL SPEED

Gear

1st

2nd

3rd

Foward(km/h)

0-3.29

0-5.28

0-9.63

Reverse(km/h)

0-4.28

0-7.59

0-12.53

Shantui Bulldozer UNDERCARRIAGE SYSTEM
Type……………………………………………………..Splayed beam suspended structure of equalizer
Carrier rollers(each side)…………………………….2
Track rollers(each side)………………………………6
Track type………………………………………….........Assembled,single-grouser
Width of track shoes…………………………………..510mm
Pitch…………………………………………………….203.2mm
Shantui Bulldozer OVERALL DIMENSION
Straight—tilt 5410×3388×3032mm

Performance Parameters

Length × width × height (mm) (excluding ripper)5262×4150×3074Operating weight(t) (excluding ripper)18.46
Engine modelWD10G178E25/ SC11CB184G2B1Net power/rated speed (kW/rpm)120/1850
Ground pressure(Mpa)0.027Blade type Straight tilting blade
Blade capacity(m3)3.8 for straight tilting blade

Applicable Working Conditions

Earthwork operations in soft soil, wetland, and swamp areas.

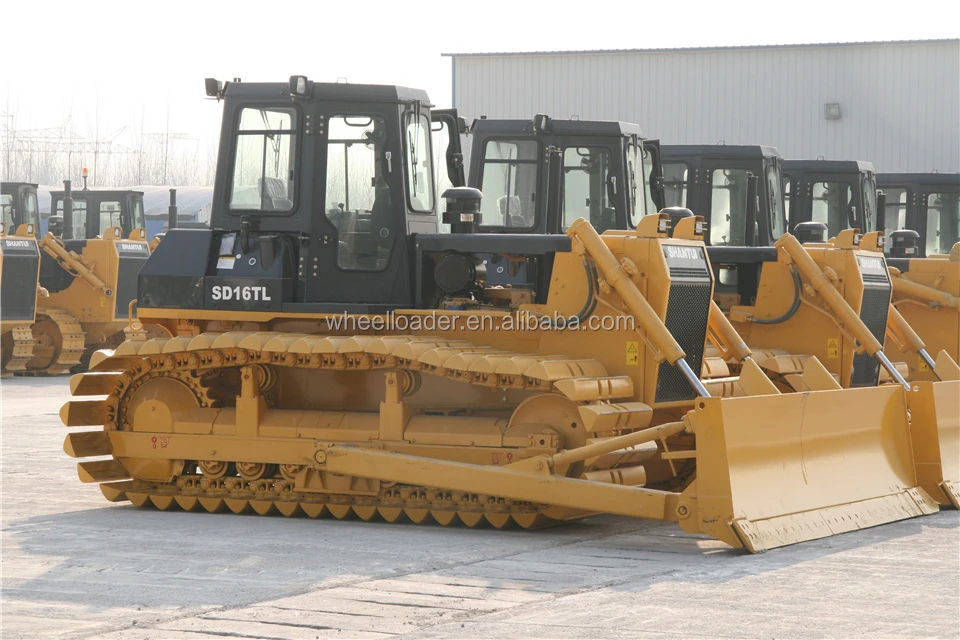

Product Show
