QY20K5 20 Ton Small Crane Truck Hydraulic

  • >=1 Units
    $79,000.00
Max. Lifting Load:
20 t
Model Number:
QY20K5
Lead Time:
Quantity(Units) 1 - 30 >30
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
47.3 m
Warranty:
1 year
Feature:
Truck Crane
Condition:
New
After-sales Service Provided:
Field maintenance and repair service, Video technical support, Online support
Place of Origin:
Jiangsu, China
Brand Name:
Oriemac
Certification:
CE ISO9001
Application:
Hoisting
Rated Loading Capacity:
20 ton
Rated Lifting Moment:
900KN.m
Span:
5.14*6 m
Min. rated working radius:
3000 mm
Turning radius at turntable tail:
3040 mm
Max. slewing speed:
≥2.5 r/min
Base boom:
10.2 m
Fully-extended boom:
39 m
Fully-extended boom+Jib:
47.3 m
Jib offset angle:
0, 15, 30°
Time for boom raising:
≤43 s
Time for boom extending fully:
≤80 s
Engine Model:
SC7H260Q5
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude Pack
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 30 >30
Est. Time(days) 15 To be negotiated






QY20K5 Small Mobile Truck Crane 20 Ton

Product Description

 Main Technical Data Table in Travel configuration



Item
Specification
Unit
Overall Length
12100
mm
Overall Width
2500
mm
Overall Height
3410
mm
Wheel Base
2074/1834
mm
Total vehicle mass in travel configuration
29800
kg
1st Axle Load
6750
kg

2nd Axle Load
11525
3rd Axle Load
11525
Engine Model
SC7H260Q5

Engine rated power
192/2300
kw/(r/min)
Engine rated torque
1000/1400
N.m/(r/min)
Max. travel speed
80
km/h
Min. travel speed
4
km/h
Min. turning diameter
22
m
Min. ground clearance
275
mm
Max. grade ability
40
%
Approach angle
20 /11
°
Departure angle
13
°
Braking distance (at 30 km/h, full load )
≤10
m
Oil consumption per 100km
≤35



L



Main Technical Data Table for Lifting Operation



Item
Specification
Unit
Max. rated total lifting capacity
20
t
Min. rated working radius
3000
mm
Turning radius at turntable tail
3040
mm
Jib offset angle
0, 15, 30
°
Time for boom raising
≤43
s
Time for boom extending fully
≤80
s
Max. slewing speed
≥2.5
r/min
Max. load moment
Base boom
900
KN.m
Fully-extended boom
525
Fully-extended boom+Jib
442
Outrigger Span
Longitudinal
5.14
m
Lateral
6
Hoist Height
Base boom
10.6
m
Fully-extended boom
39
Fully-extended boom+Jib
49.9
Boom Length
Base boom
10.2
m
Fully-extended boom
39
Fully-extended boom+Jib
47.3
Outtrigger
extending&
retracting time
Outrigger beam
Extending Simultaneously
≤35
s
Retracting Simultaneously
≤30
Outrigger jack
Extending Simultaneously
≤35
Retracting Simultaneously
≤30
Hoisting speed
(single line)
Main winch
No load
≥135
dB (A)
Auxiliary
No load
≥110
dB (A)

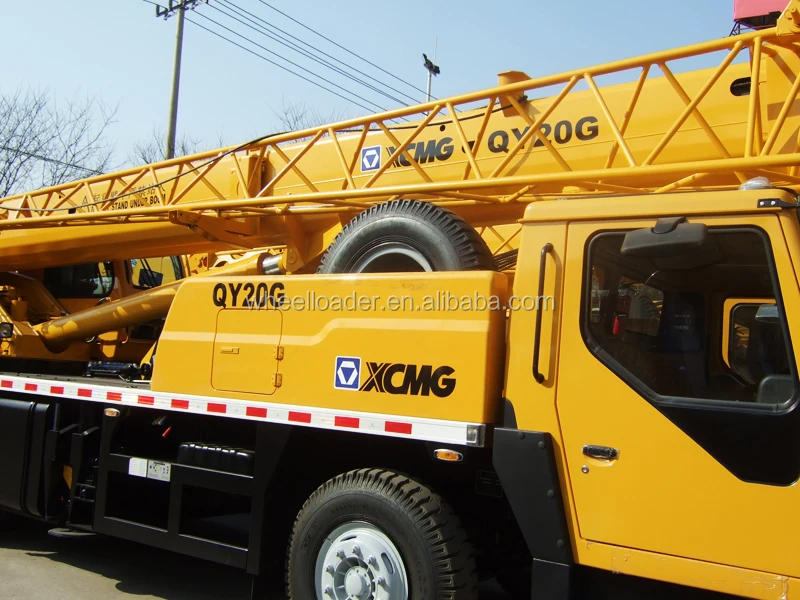

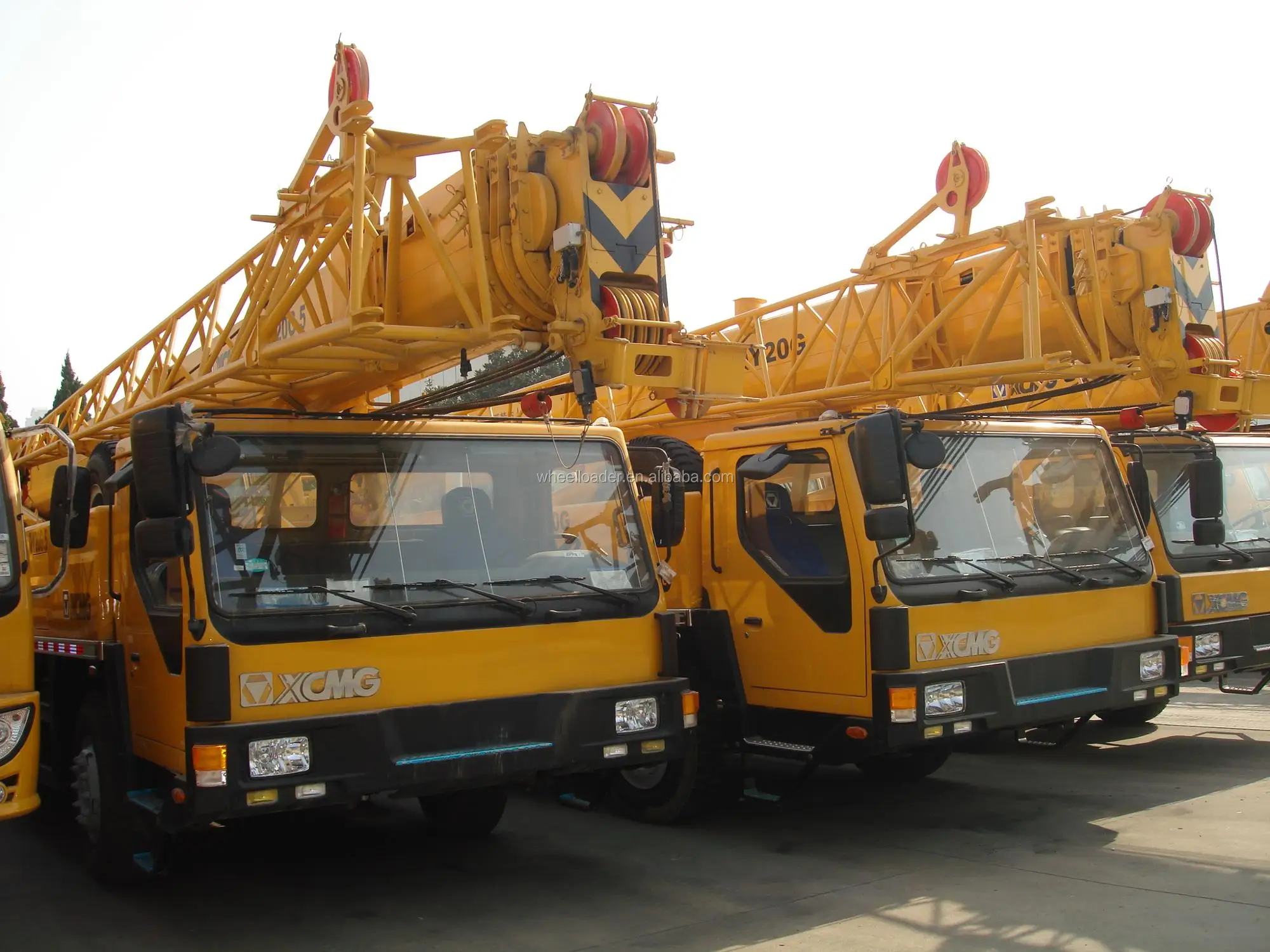

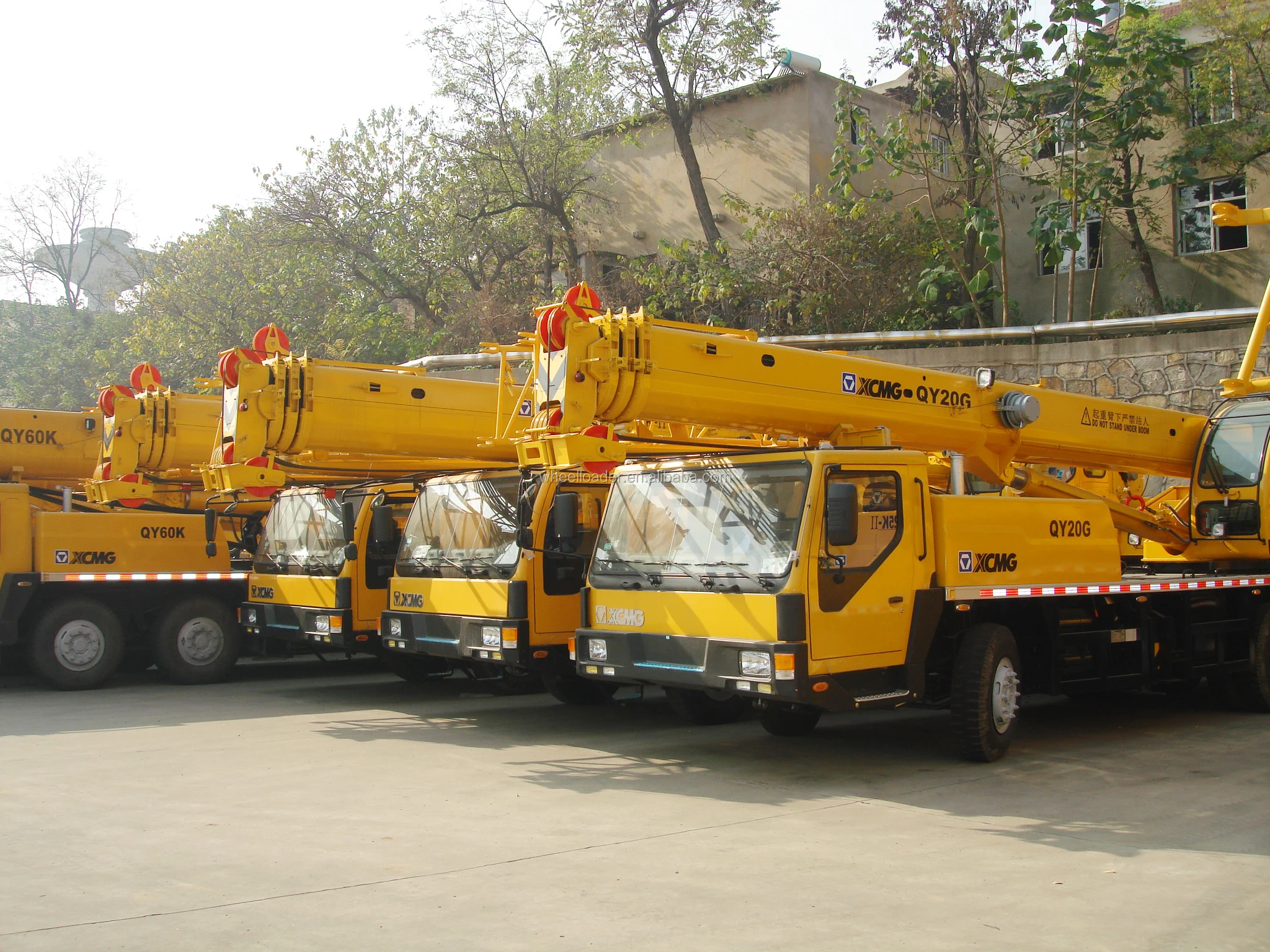

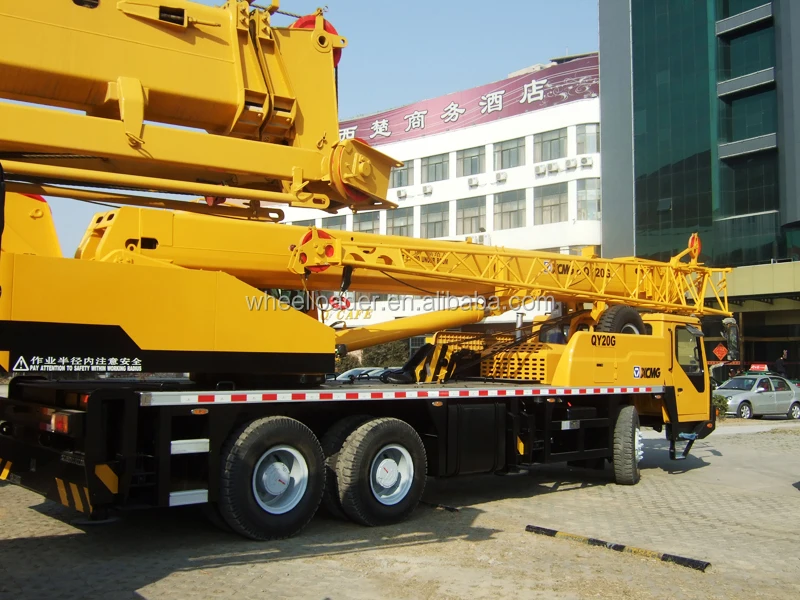

DSC01917 - .JPGDSC01943 - .JPGQY20G 2.jpgQY20G.jpg
