SANY 55 Ton Boom Truck Crane STC550H Truck Crane Price

FOB Reference Price:Get Latest Price
$270,000.00 - $320,000.00 / Unit | 1 Unit/Units (Min. Order)
Max. Lifting Load:
55 t
Model Number:
STC550H
Lead Time:
Quantity(Units) 1 - 30 >30
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
59 m
Warranty:
1 year
Feature:
Truck Crane
Condition:
New
After-sales Service Provided:
Field maintenance and repair service, Video technical support, Online support
Place of Origin:
Hunan, China
Brand Name:
SANY
Certification:
CE ISO9001
Application:
Construction
Rated Loading Capacity:
55 t
Rated Lifting Moment:
1774kN*m
Span:
6*7.2m
Overall length:
13750mm
Overall width:
2750mm
Overall height:
3800mm
Axles:
4
Overall weight:
42000kg
Engine Rated power:
259kw/2100r/min
Emission standard:
EURO III
Max. traveling speed:
85km/h
Temperature range:
-20 ℃ ~ + 40 ℃
Boom section:
5
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude Pack
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 30 >30
Est. Time(days) 15 To be negotiated






SANY 55 Ton Crane STC550H Mobile Truck Crane

Product Description



Stable chassis performance

Double-axle drive is used, providing reliable traveling performance under complex road conditions.

Engine has the multimode power output function, which reduces power consumption.

The use of tipping over early-warning technology provides high stability and safety of the overall operation.

Energy-saving hydraulic system

Hydraulic system load feedback and constant power control is applied to provide strong lifting capacity and good micro-mobility.

Unique steering buffer design is adopted to ensure stable braking operation.

Strong load lifting capacity

Five-section boom of high strength steel structure and optimized U-shaped cross section reduces weight significantly with higher safety rates.

Jib mounting angles are 0° 15°and 30°, which ensures fast and convenient change-over among different operating conditions so as to improve working efficiency of the machine.

Intelligent electric control system

Self-developed controller SYMC specially for engineering machinery is configured.

The CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability.

Timely feedback of data information can achieve the monitoring of the overall working status in real-time.

Safety devices

The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within ±5% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.

TypeItemParameter
CapacityMax. lifting capacity55 t
DimensionsOverall length13750 mm
Overall width2750 mm
Overall height3800 mm
Axle distanceAxle-1,21450 mm
Axle-2,34000 mm
Axle-3,41350 mm
WeightOverall weight42000 kg
Axle loadAxle load-1,216000 kg
Axle load-3,426000 kg
Rated power259kw/1200r/min
Rated torque1425 N.m/ 1200 rpm
TravelingMax.traveling speed85 km/h
Turning radiusMin.turning radius12 m
Min.turning radius of boom head14.5 m
Wheel formula8 × 4
Min.ground clearance295 mm
Approach angle18 °
Departure angle12 °
Max.gradeability40%
Fuel consumption per 100km≤ 45 L
Main Performance DataTemperature range– 20 ℃ ~ +40 ℃
Min.rated range3 m
Tail slewing radius of swingtable4 m
Boom section5
Boom shapeU-shaped
Max.lifting momentBase boom1774 kN·m
Full-extend boom840.8 kN·m
Full-extend boom+jib318 kN·m
Boom lengthBase boom11.5 m
Full-extend boom43 m
Full-extend boom+jib59 m
Outrigger span (Longitudinal×Transversal)6 × 7.2 m
Jib offset0 °,15 °,30 °
Working speedMax.single rope lifting speed of main winch (no load)130 m/min
Max.single rope lifting speed of auxiliary winch (no load)130 m/min
Full extension/retraction time of boom100 / 120 s
Full lifting/descending time of boom80 / 80 s
Slewing speed0~2.0 r/min
AirconditionAircondition in up cabHeating/Cooling
Aircondition in low cabHeating/Cooling

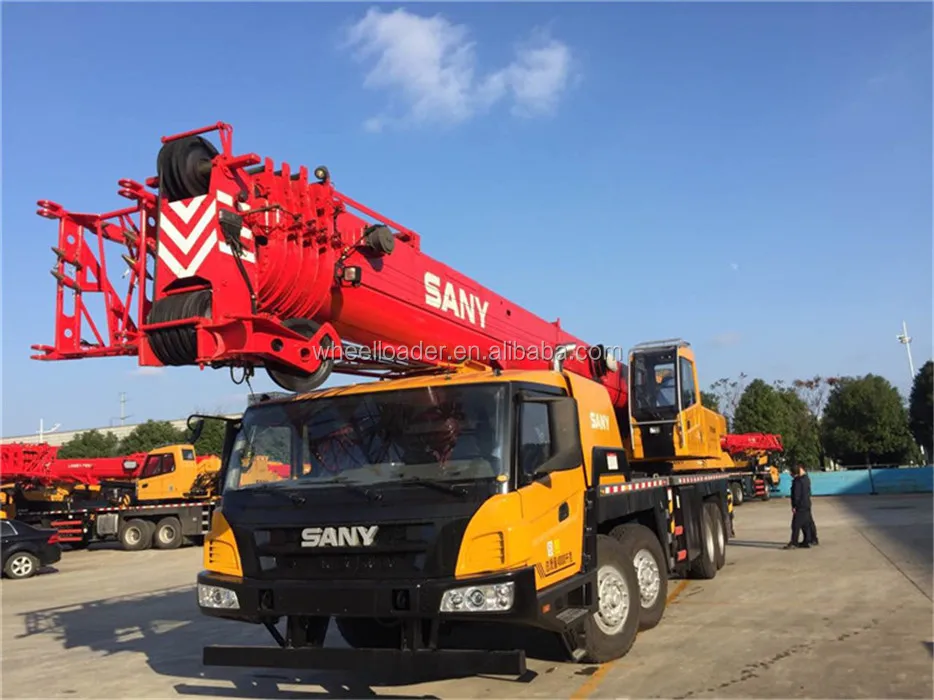

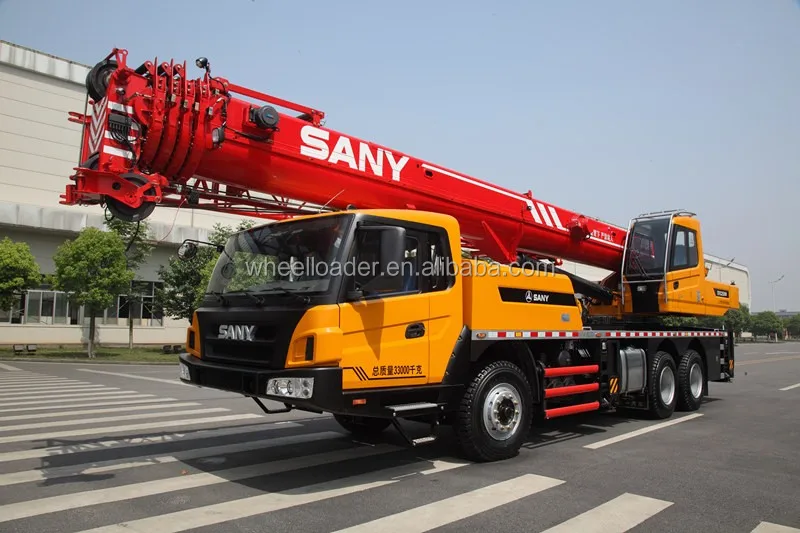

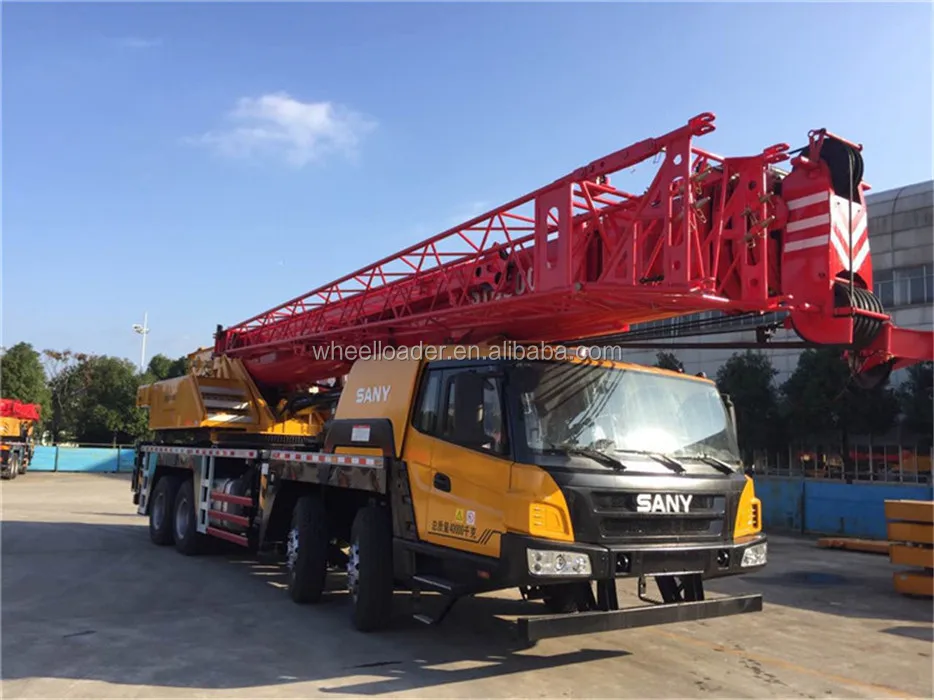

STC500S (1).JPGSTC500S (2).JPG2.1.2 T Cra_SANY_STC550_1.jpg
